Boyd Industries

Client: Boyd Industries
Type: AI Imagery, Web Design & Digital Marketing
Disciplines: AI Image Generation · Catalog Imagery · Python Development · Workflow Automation · UX Design · Web Design · Web Development · Content Strategy · SEO · CRM/ERP Integration · Lead Generation · Inbound Marketing

A digital transformation for Boyd Industries, a 65-year-old market leader in the design and manufacture of dental operatory equipment and cabinetry.

The most recent work is the catalog imagery. Boyd builds to order, and a single chair carries dozens of upholstery colorways before configurations and camera angles multiply it again — far more variants than any photo shoot can cover. The answer was a pipeline built on Boyd's own product photography, generating the room to order, computing every colorway from the published swatch values, and measuring each result back against both the swatch and the original product. It runs in ComfyUI, a tool Boyd's own team can open, and adding an angle or a configuration multiplies the set again with no new shoot.

That grew out of the website engagement, where the goal was to turn a dated catalog into an engaging, content-driven product experience, rebuilding the site architecture around the specialties Boyd serves, adding search and filtering, and deepening the story with content on their history, hand-built manufacturing, and sustainability.

Beyond the site, the engagement spanned an in-depth SEO audit and content strategy, art direction for product photography, a two-way CRM/ERP integration to sync inventory and leads, and an inbound marketing and lead-nurturing program.

Catalog imagery at scale

A Boyd upholsterer sewing a chair cover on the factory floor in Florida — Boyd builds to order. One chair carries dozens of upholstery colorways, and configurations and camera angles multiply that again — far more variants than a photo shoot can cover. What Boyd does have is years of clean product photography on white.

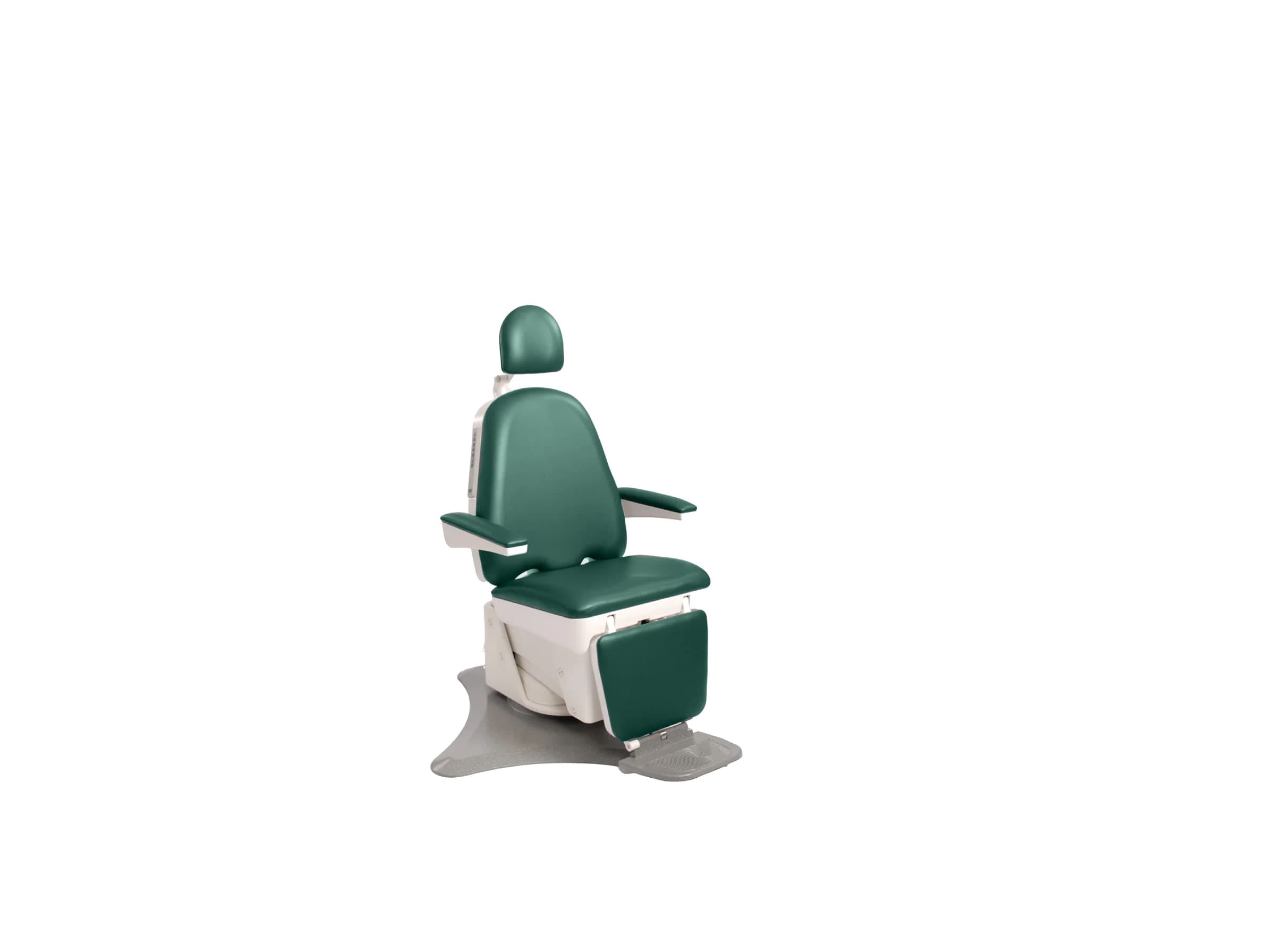

A Boyd exam chair in green upholstery, photographed against a white background — Every finished image starts from Boyd's own product photography. In a catalog image the product is the entire point, and it is the one thing that should be a true representation rather than an interpretation. So every frame is measured against the original and rejected if the product has drifted.

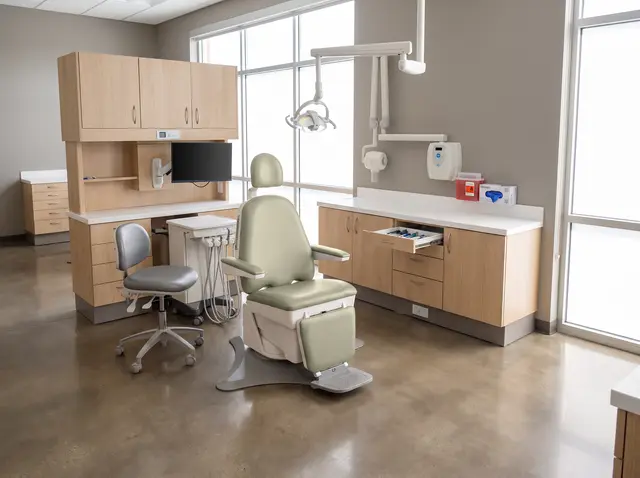

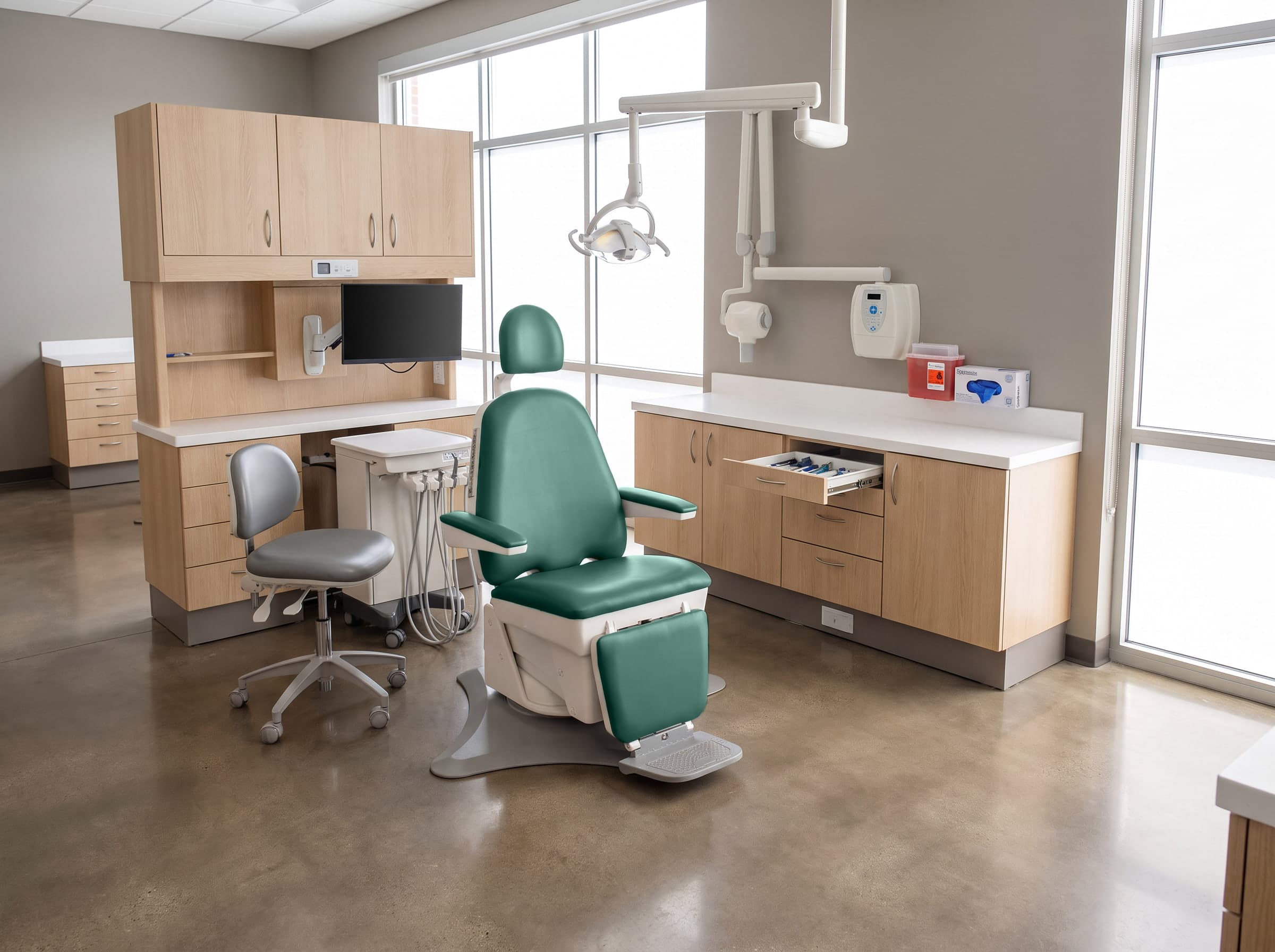

The same chair, in the same position, standing in a generated operatory with cabinetry, a delivery unit, a monitor arm and daylight from a window wall — Every finished image starts from Boyd's own product photography. In a catalog image the product is the entire point, and it is the one thing that should be a true representation rather than an interpretation. So every frame is measured against the original and rejected if the product has drifted.

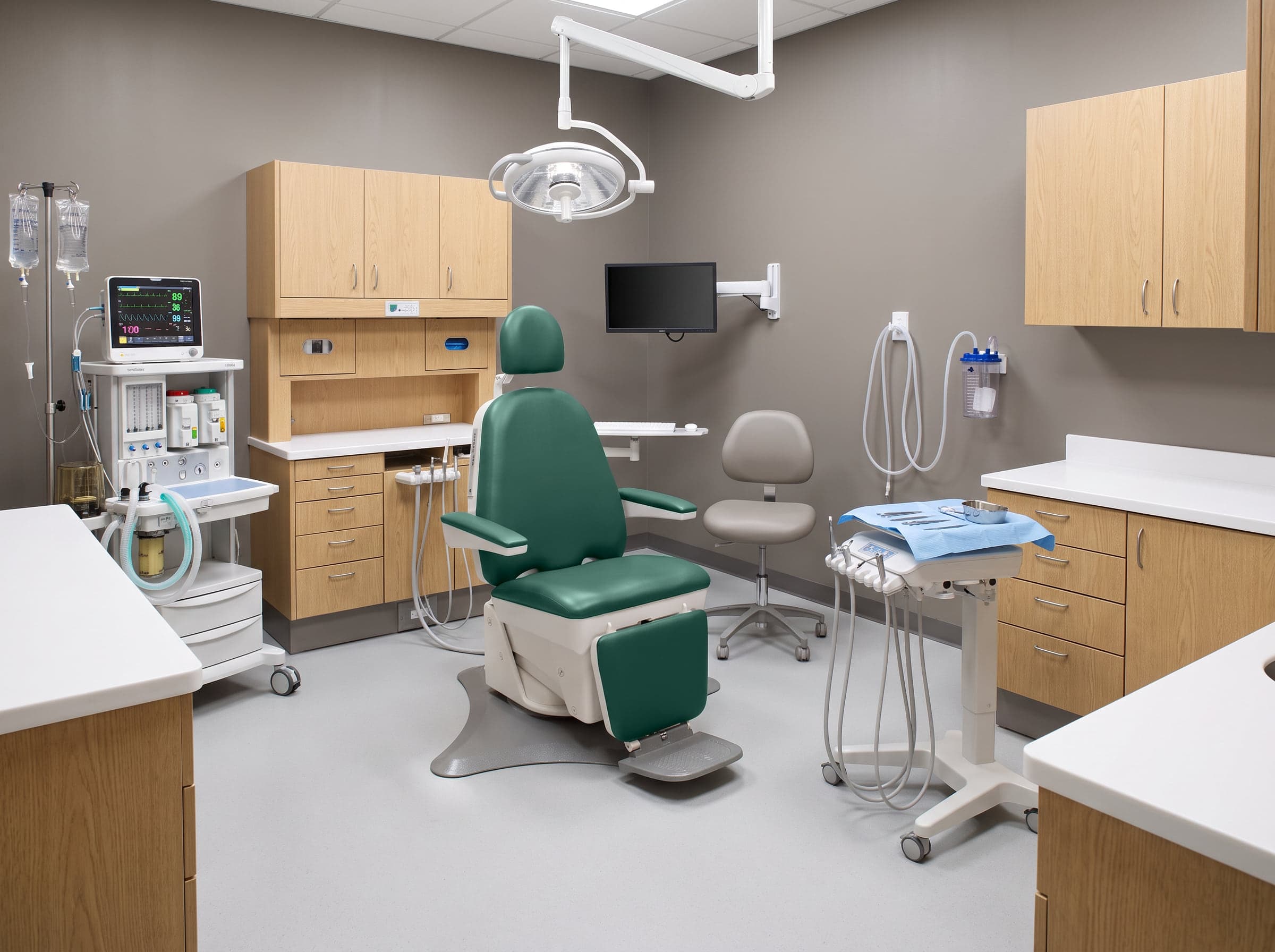

A generated surgical operatory around a Boyd chair: cabinetry, a surgical light, a monitor arm, an anesthesia cart and a patient monitor — Rooms come from a model trained on Boyd's own installed operatories, so the environments represent real Boyd installations rather than a generic dental office. Each room's lighting is then measured and applied to the product physically, which is what keeps a composited image from looking composited.

The ComfyUI graph for the project, its custom nodes wired together with preview images at each stage — ComfyUI is the industry standard for this kind of work and, just as importantly, a tool Boyd's own team can open and run. The Boyd steps are 23 custom nodes written for this project. Every stage is visible, previewed on the canvas, and prints how far the result landed from specification.

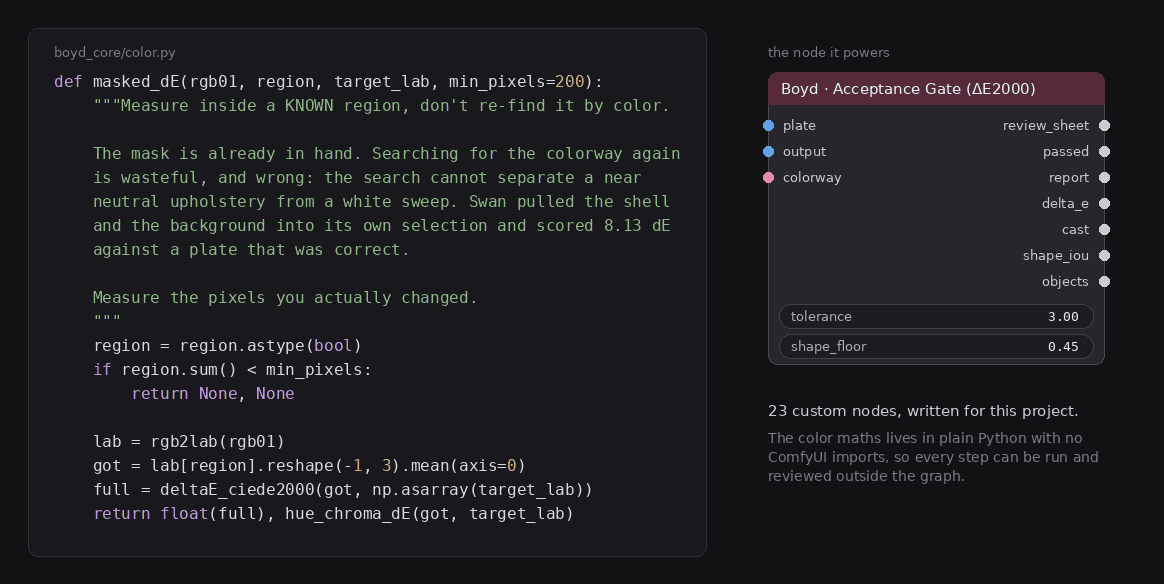

The Python that measures each colorway, shown beside the acceptance-gate node it powers — Measure it, don't eyeball it. Every color is computed in CIELAB from Ultraleather's published value and measured back against it in ΔE2000. The color math lives in plain Python with no ComfyUI imports, so every step can be run and reviewed outside the graph, and a gate rejects any frame where the model altered the chair.

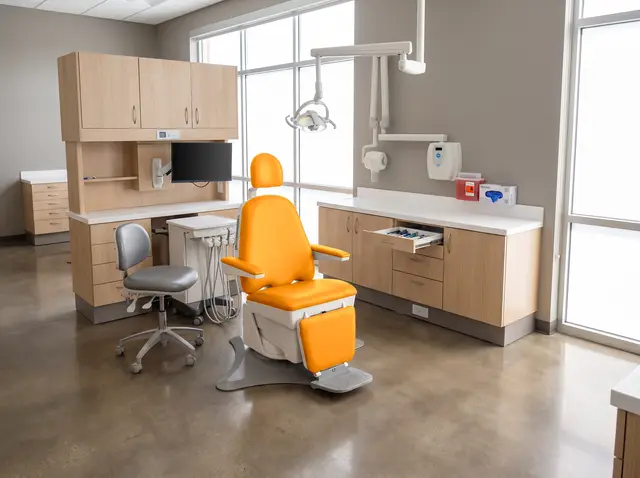

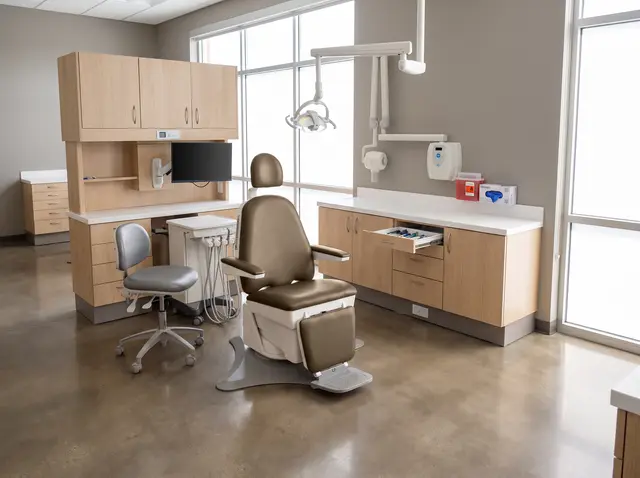

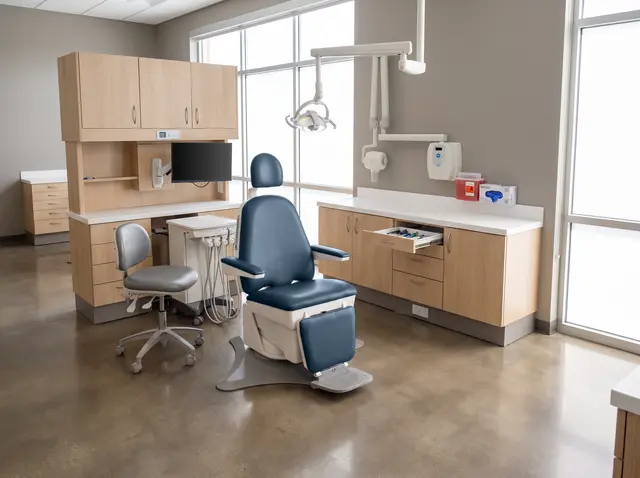

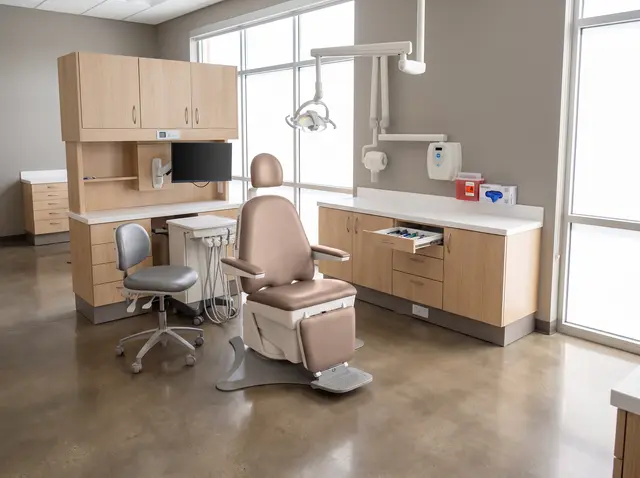

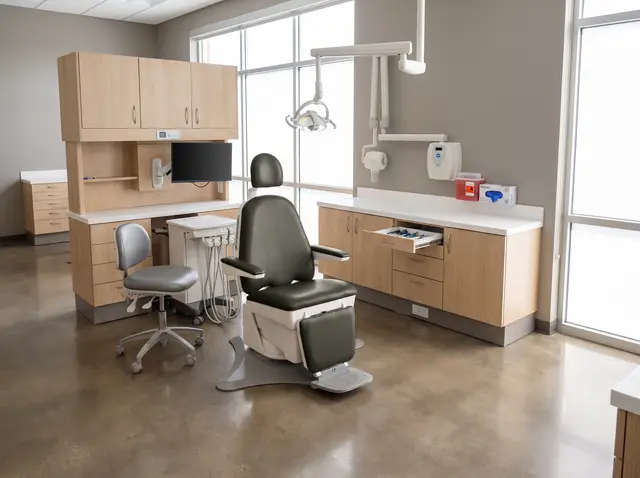

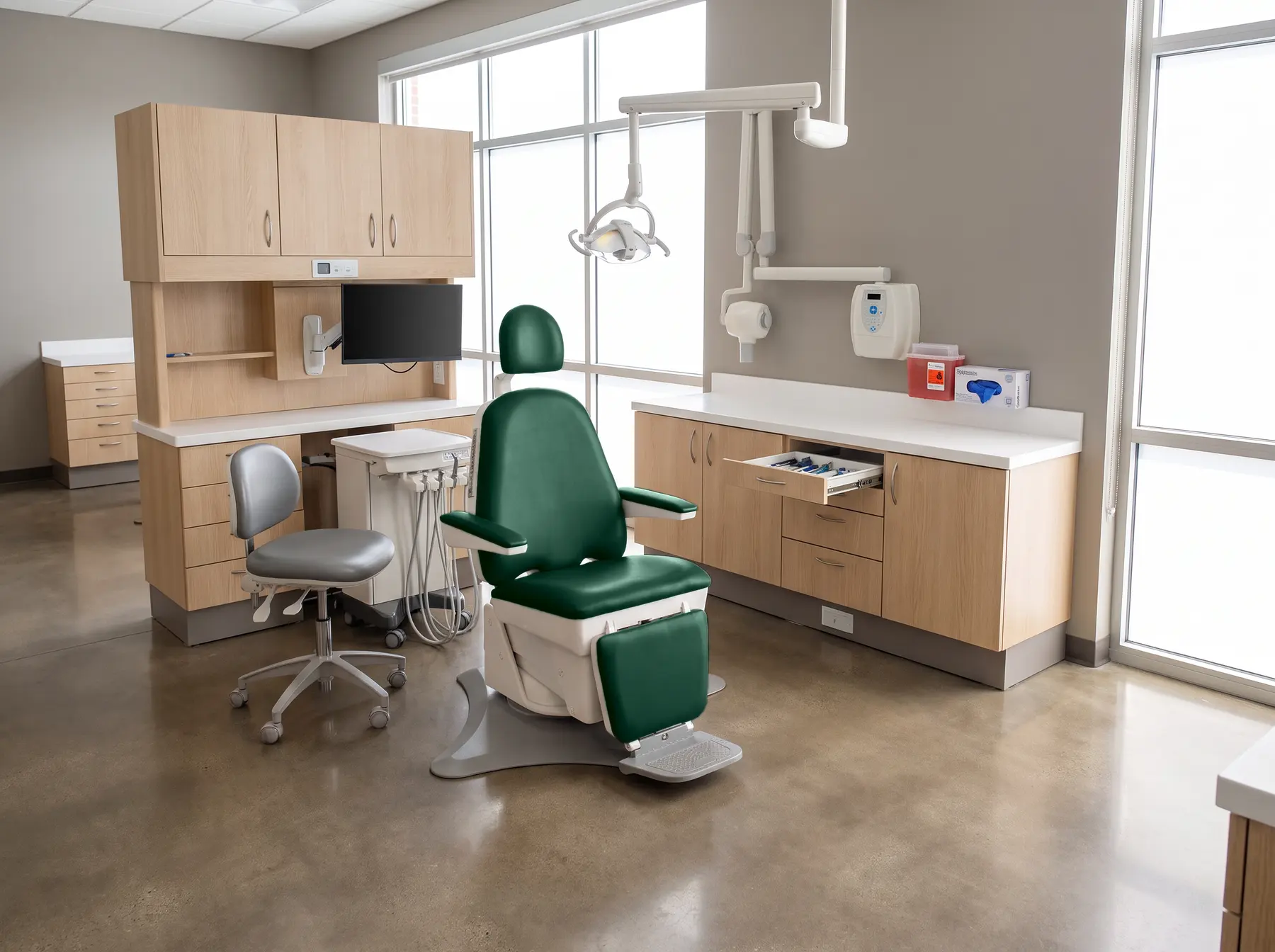

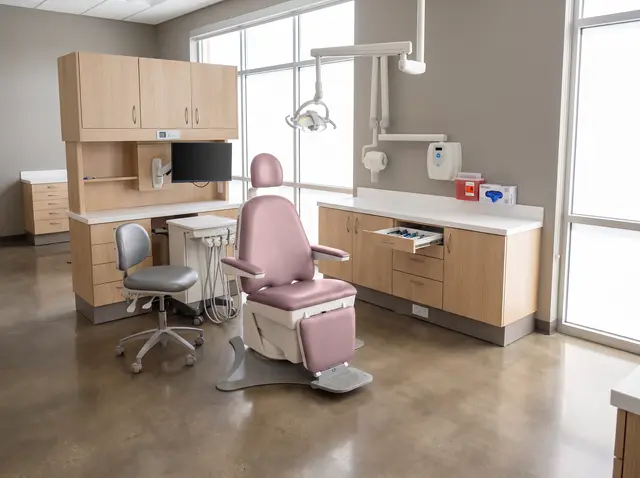

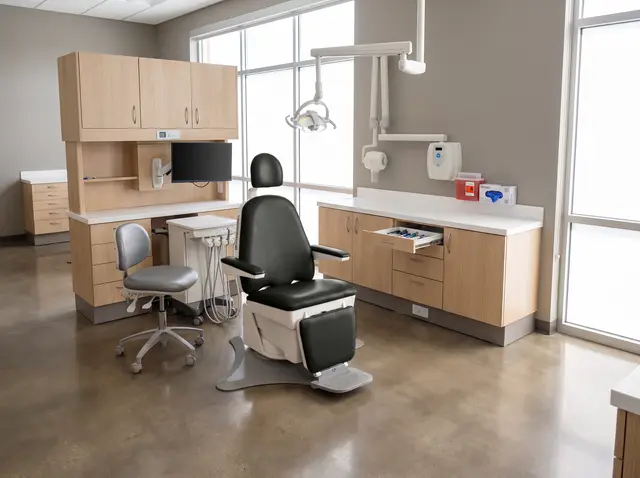

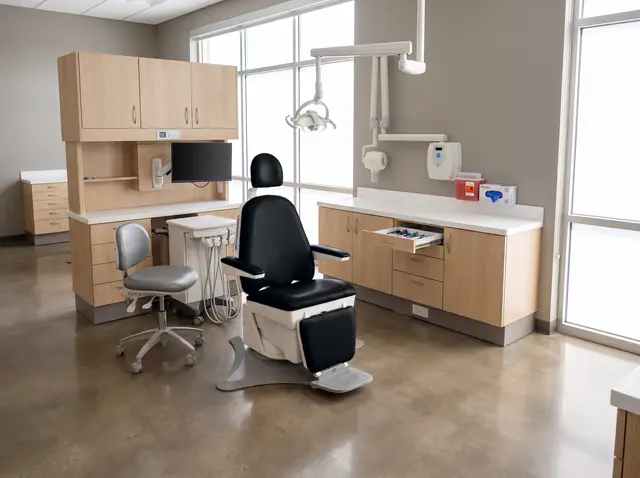

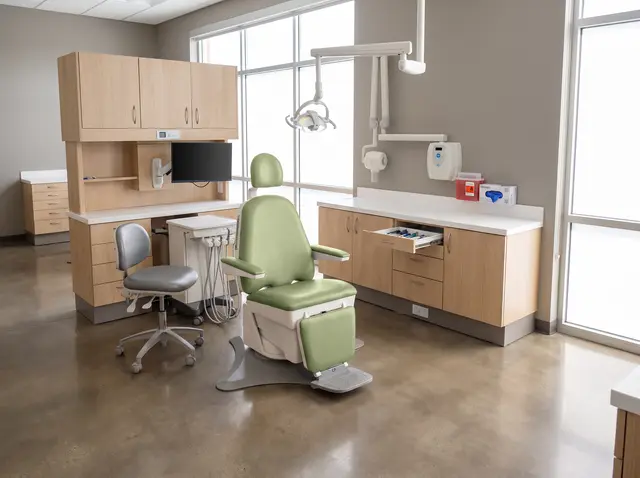

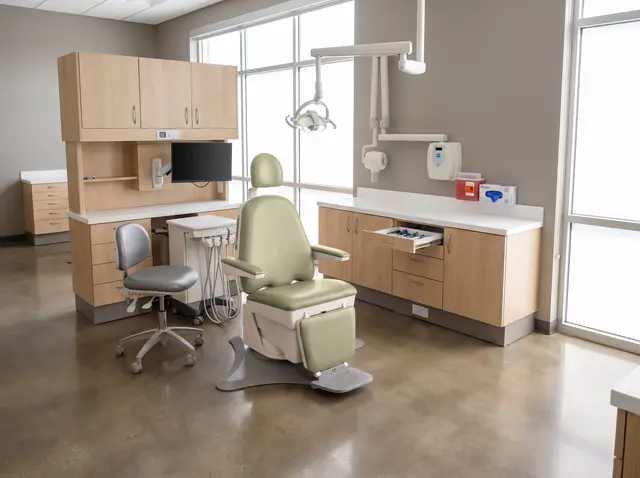

The same generated operatory reissued in one Ultraleather colorway after another, the room identical in every frame — slide 1 of 14 — Generate once, iterate freely. The environment is generated once and every colorway is computed onto that same frame in milliseconds, so iterating costs no further generation.

The same generated operatory reissued in one Ultraleather colorway after another, the room identical in every frame — slide 2 of 14 — Generate once, iterate freely. The environment is generated once and every colorway is computed onto that same frame in milliseconds, so iterating costs no further generation.

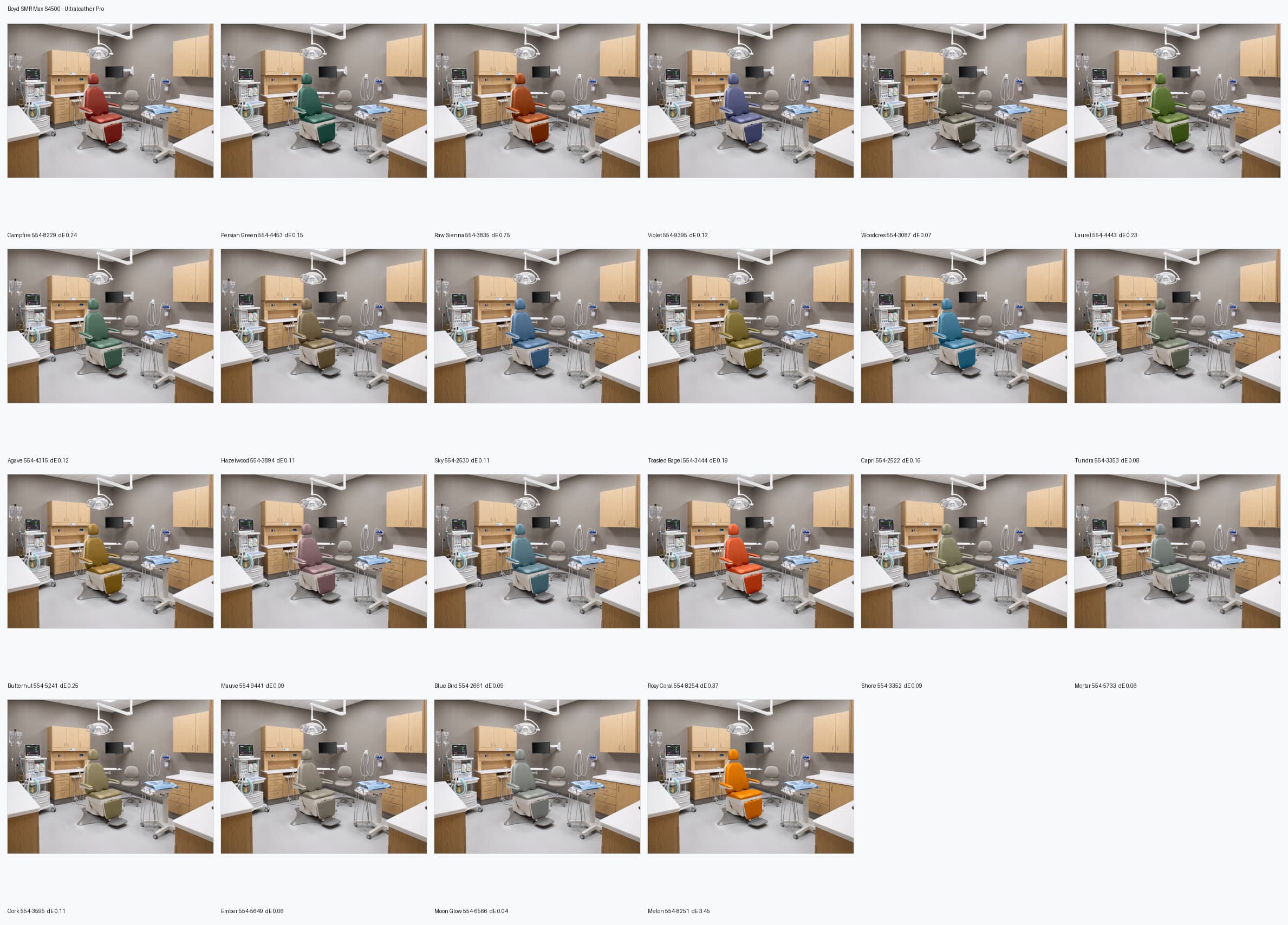

A contact sheet of one generated operatory in every colorway, each frame labelled with its Ultraleather number and measured color difference — Every frame ships labelled with its Ultraleather number and the color difference measured against the swatch book, so the set can be checked rather than trusted.

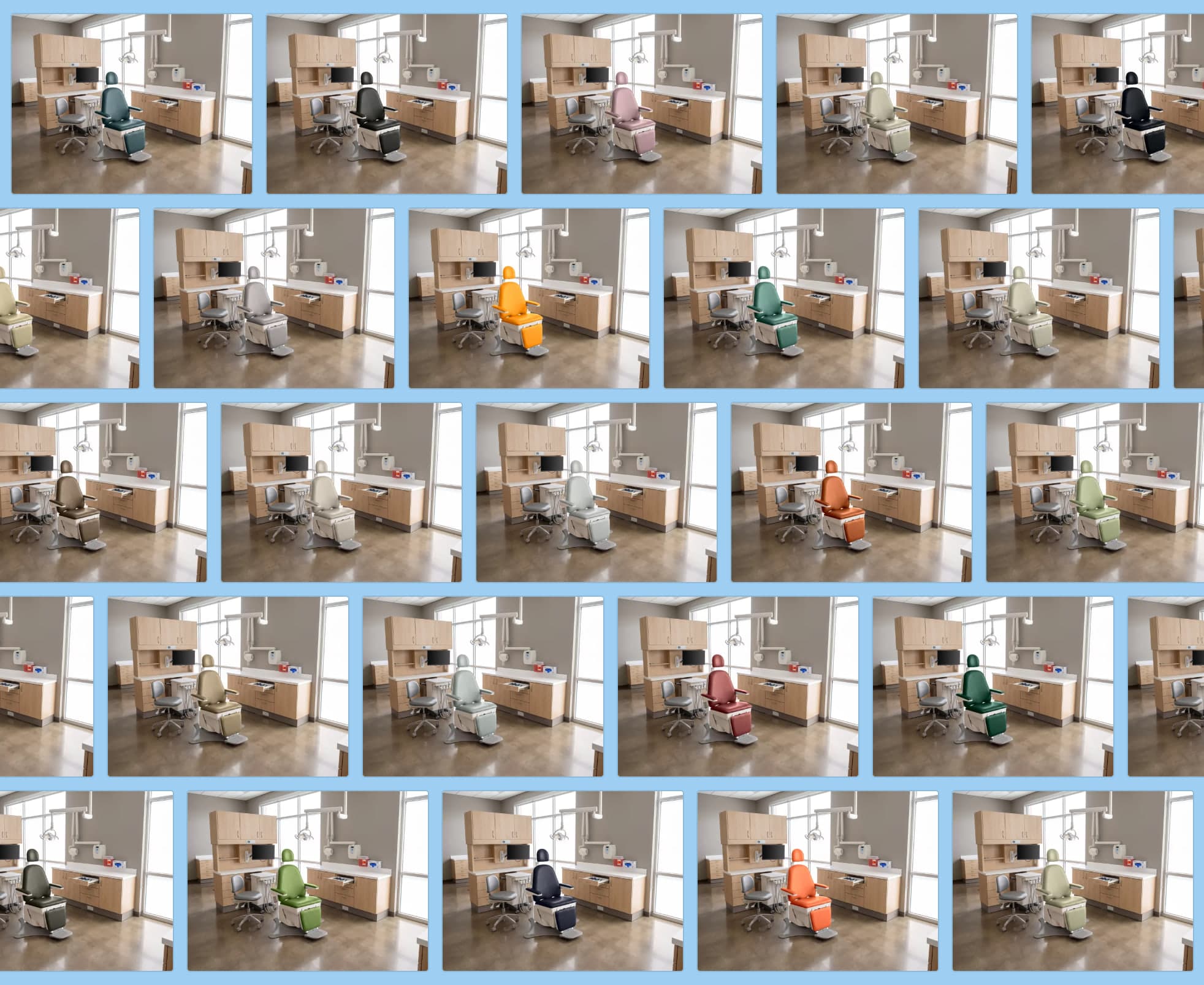

The finished catalog set: the same operatory delivered across the full range of upholstery colorways — The deliverable: a full catalog set built from photography Boyd already owns, color matched to the swatch book and measured to prove it. Add an angle or a configuration and it multiplies again, with no new photo shoot.

Website overhaul

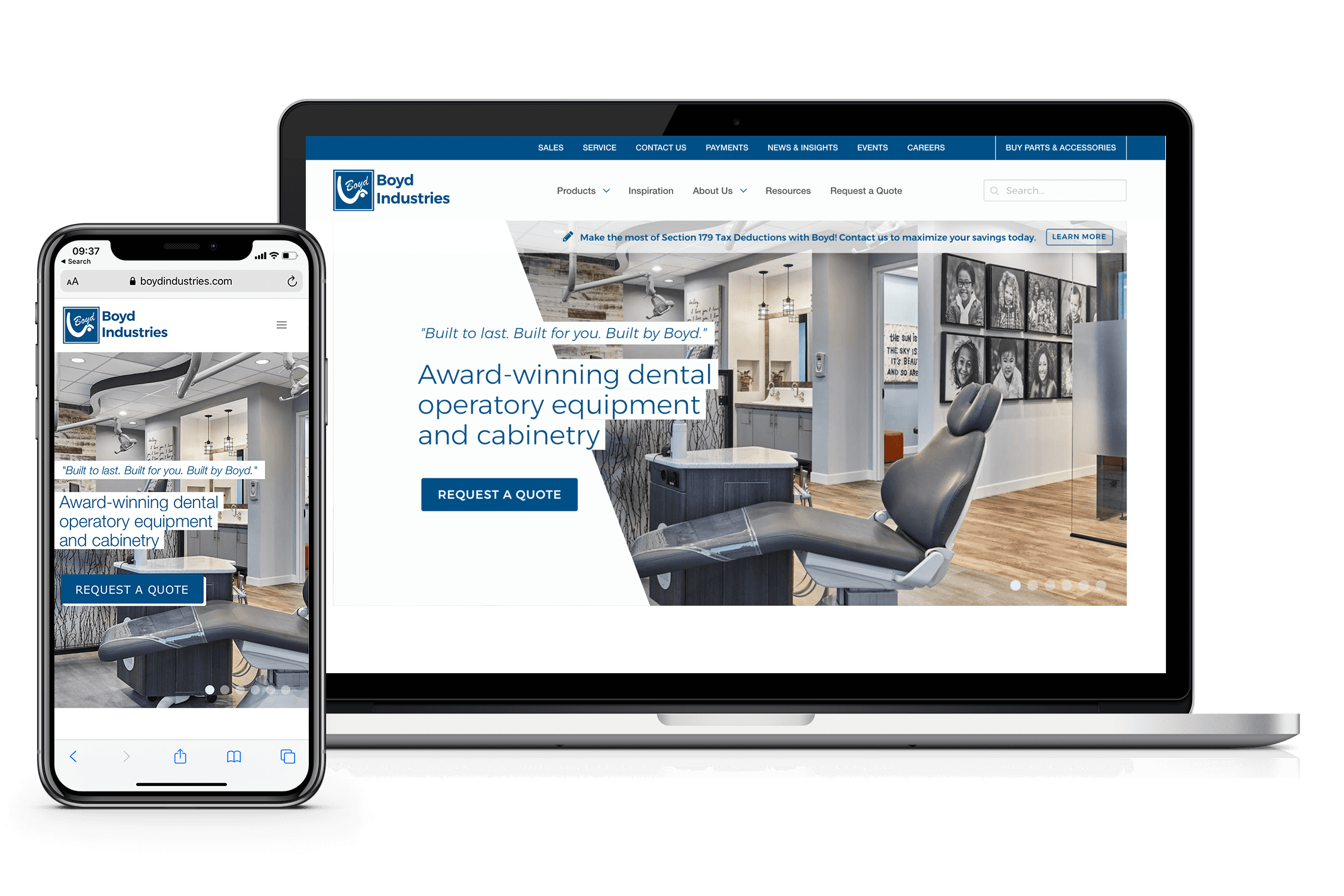

The redesigned Boyd Industries website, responsive across laptop and phone

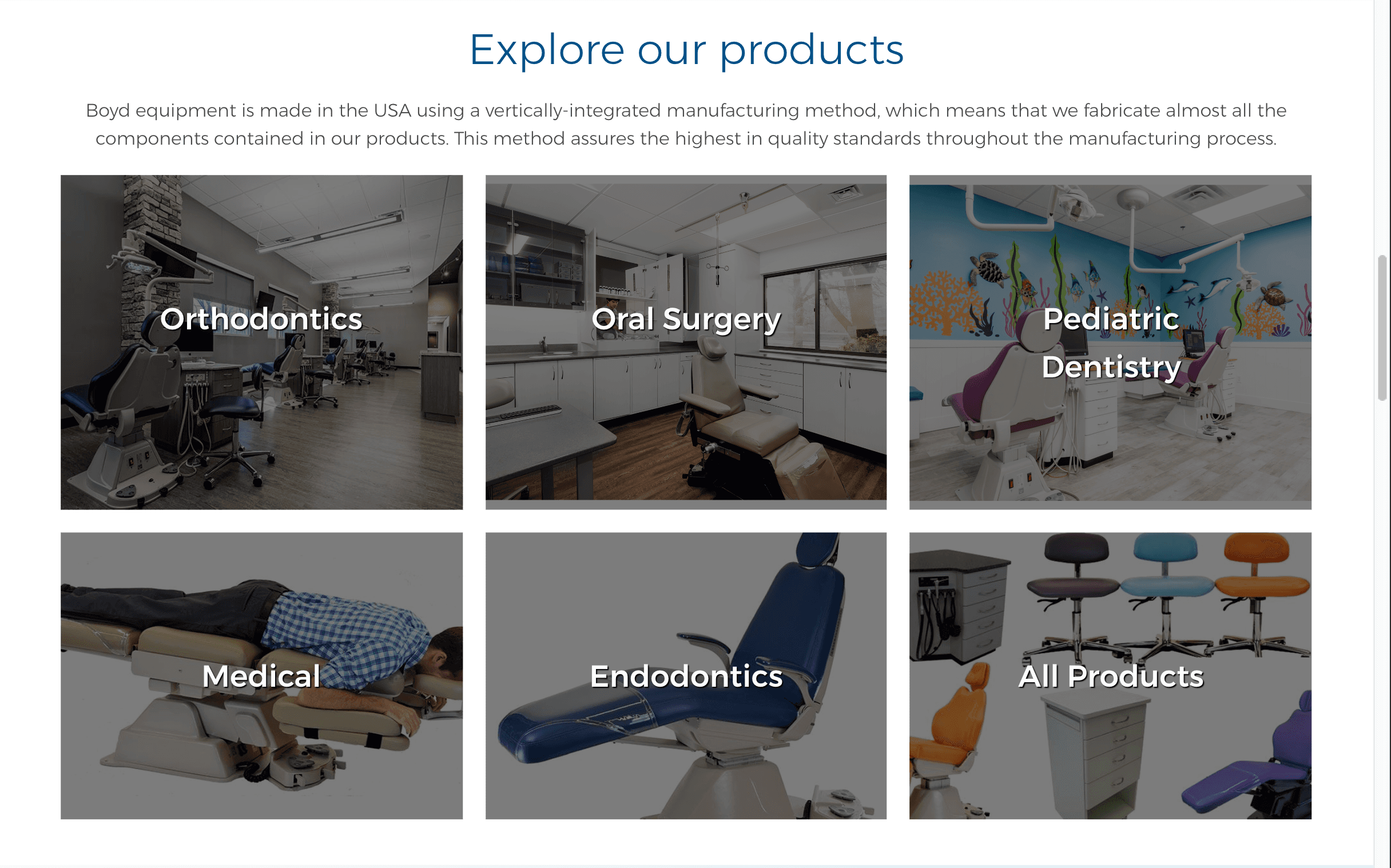

Boyd Industries product catalog, with categories shown as photos of dental and medical operatory rooms — The catalog is organized by the specialties Boyd serves (orthodontics, oral surgery, pediatric dentistry, and more), with category and industry filters for anyone who'd rather browse the full range.

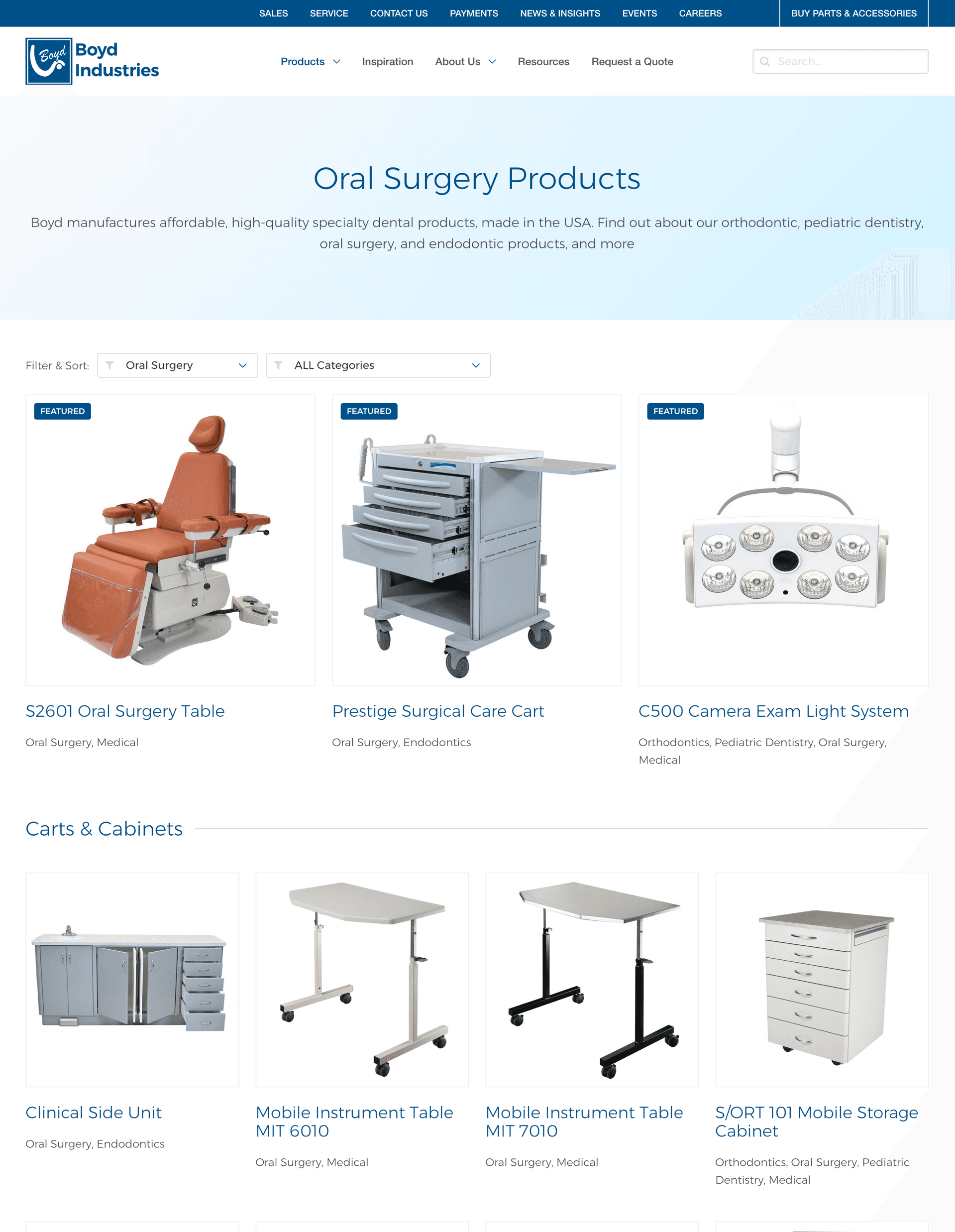

Boyd oral surgery products category page listing treatment tables, carts, and cabinets — Category pages let Boyd promote three featured products up top, steering visitors toward the items they most want to sell.

Category pages let Boyd promote three featured products up top, steering visitors toward the items they most want to sell.

Hovering a product swaps to a second image showing a different angle or a custom option, so shoppers can compare at a glance.

Product pages pair art-directed photography and on-hover angle swaps with rewritten, keyword-aware copy. Every title and description was reworked for search and clarity.

Instant search surfaces products, resources, and articles as visitors type.

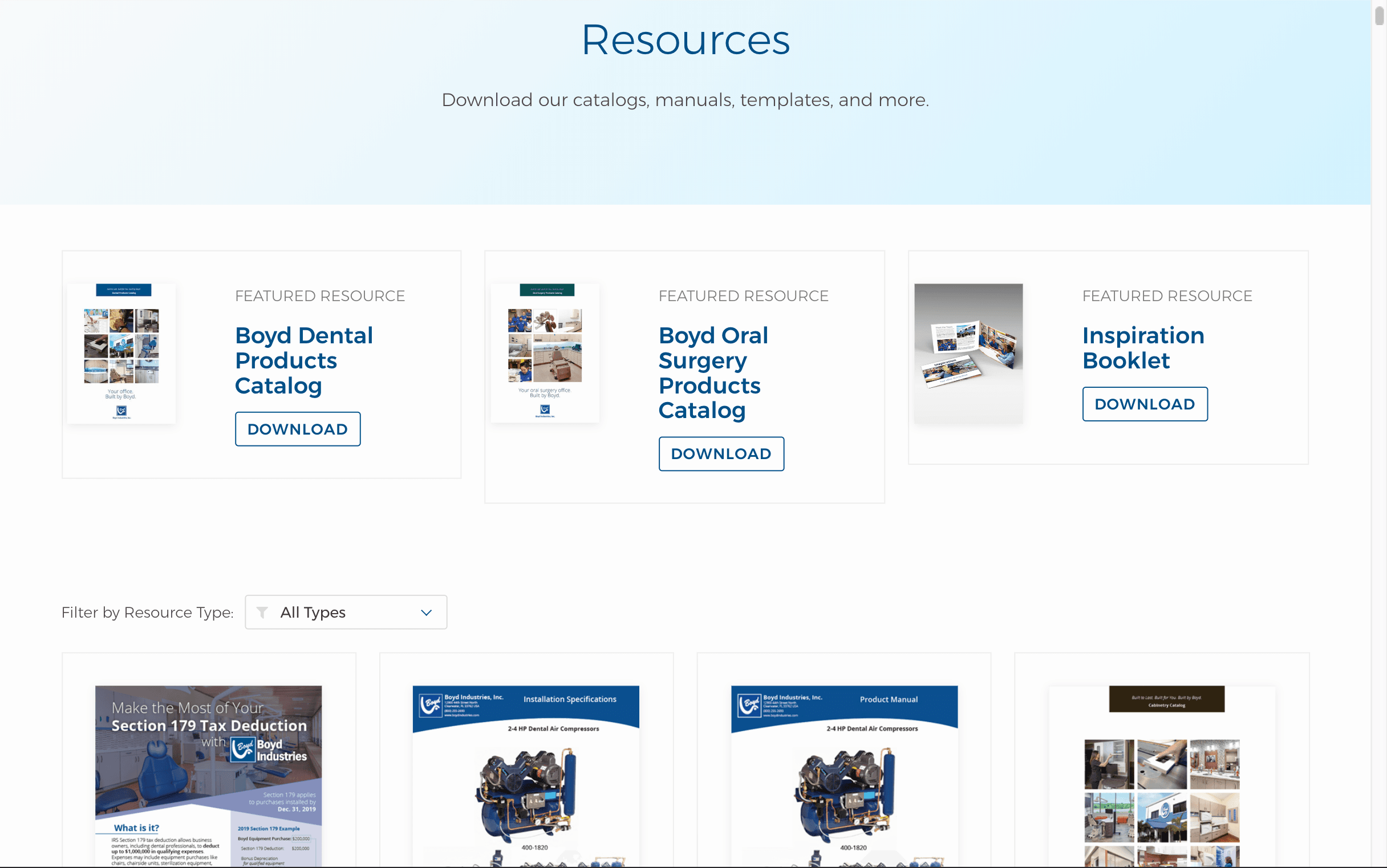

Boyd Resources section offering downloadable product catalogs and guides — A Resources hub with gated catalogs and guides turns traffic into leads: visitors trade contact details for downloads.

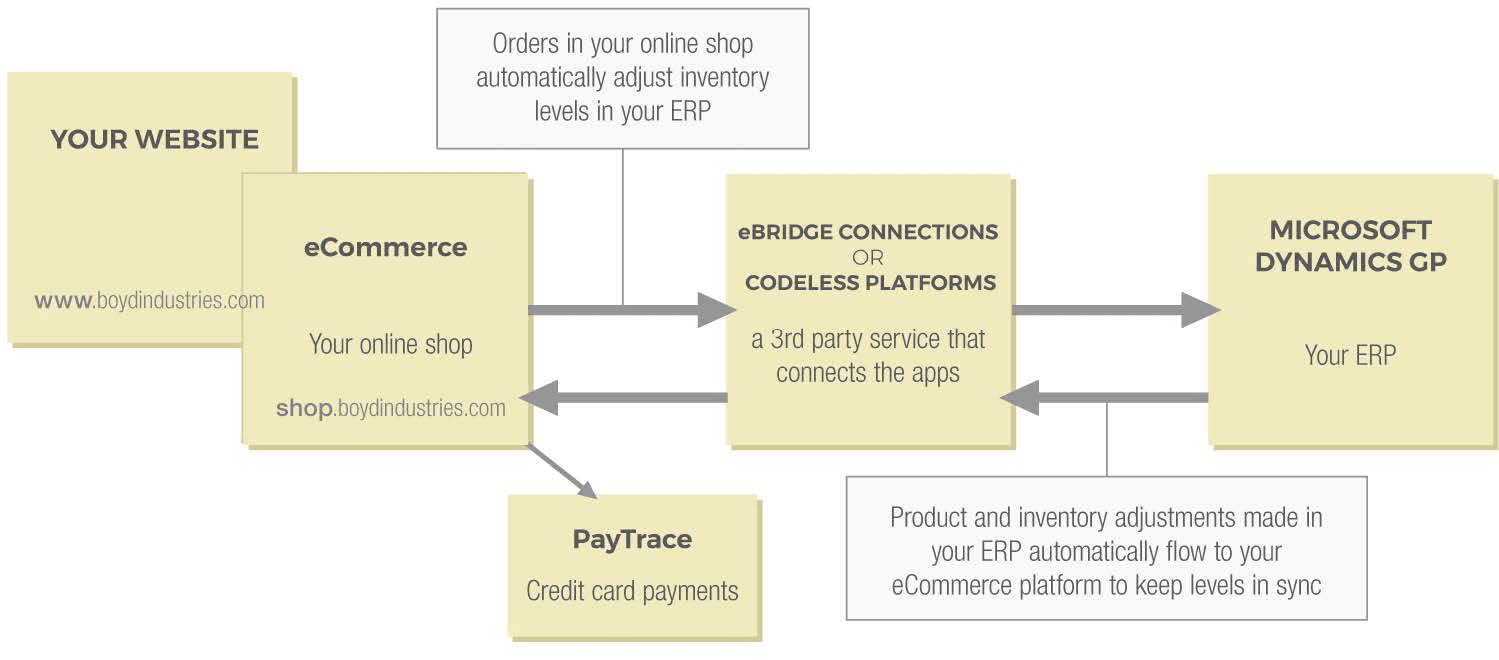

Diagram of the website and eCommerce store integrating with Boyd's ERP and payment systems — A two-way integration links the site and store to Boyd's CRM and Microsoft Dynamics ERP, syncing inventory and routing new leads automatically.

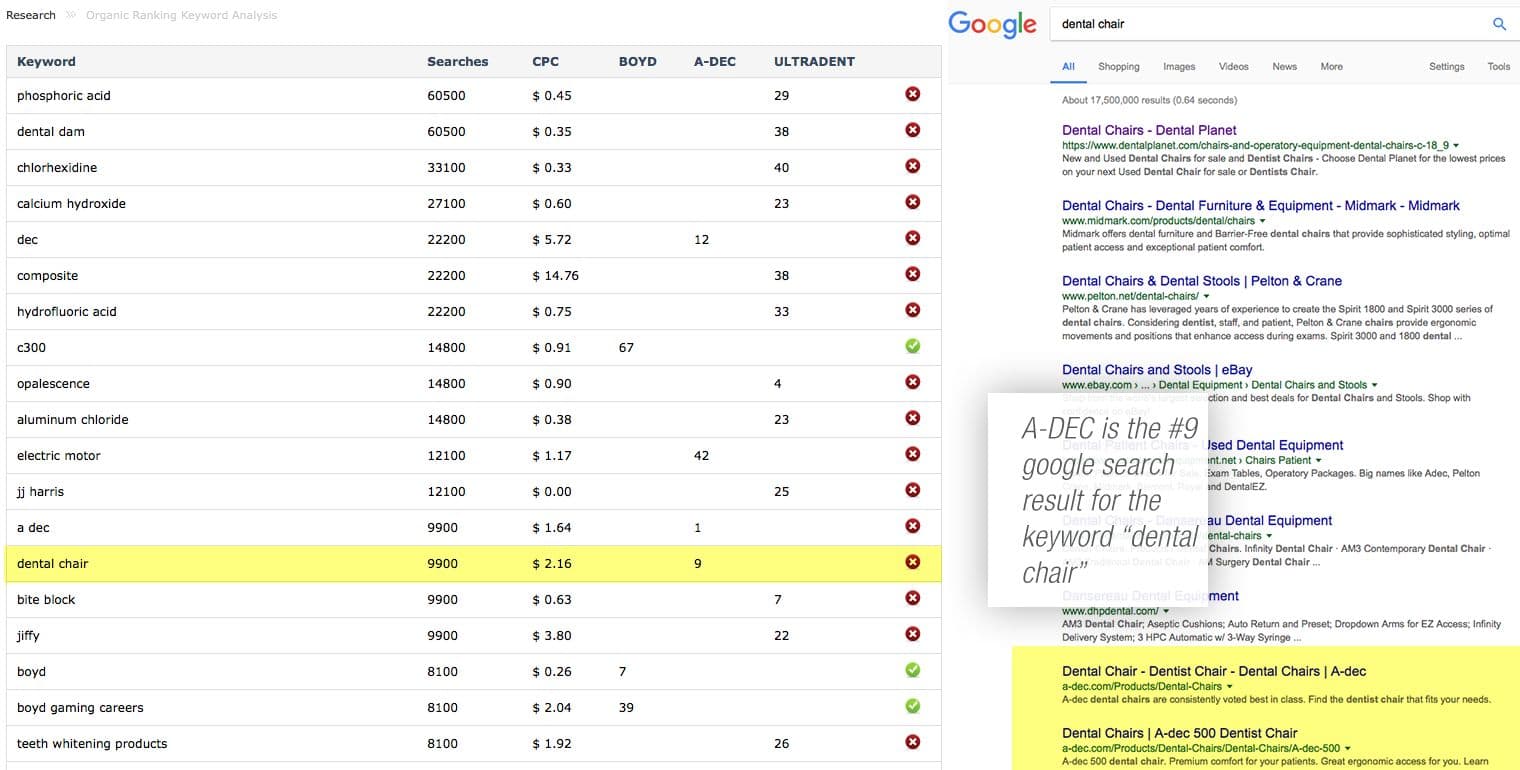

SEO keyword research and competitor search-results analysis for Boyd — The engagement opened with an in-depth SEO audit and competitor analysis to map Boyd's strengths, gaps, and keyword opportunities.

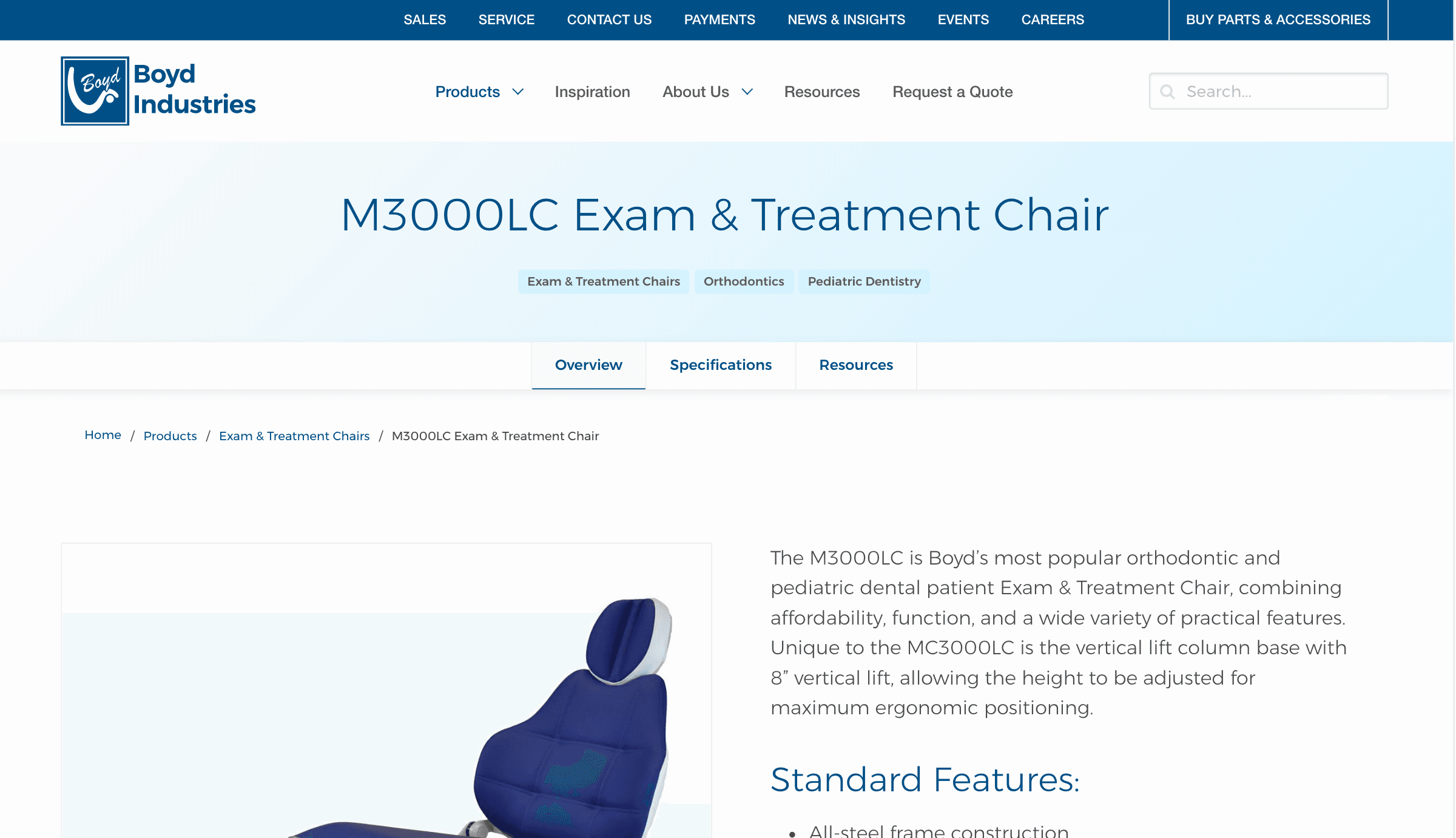

Exam and treatment chair product page built on the new CMS — A new CMS lets Boyd edit metadata per page and launch landing pages with CRM-connected forms; product titles and copy were rewritten around target keywords.

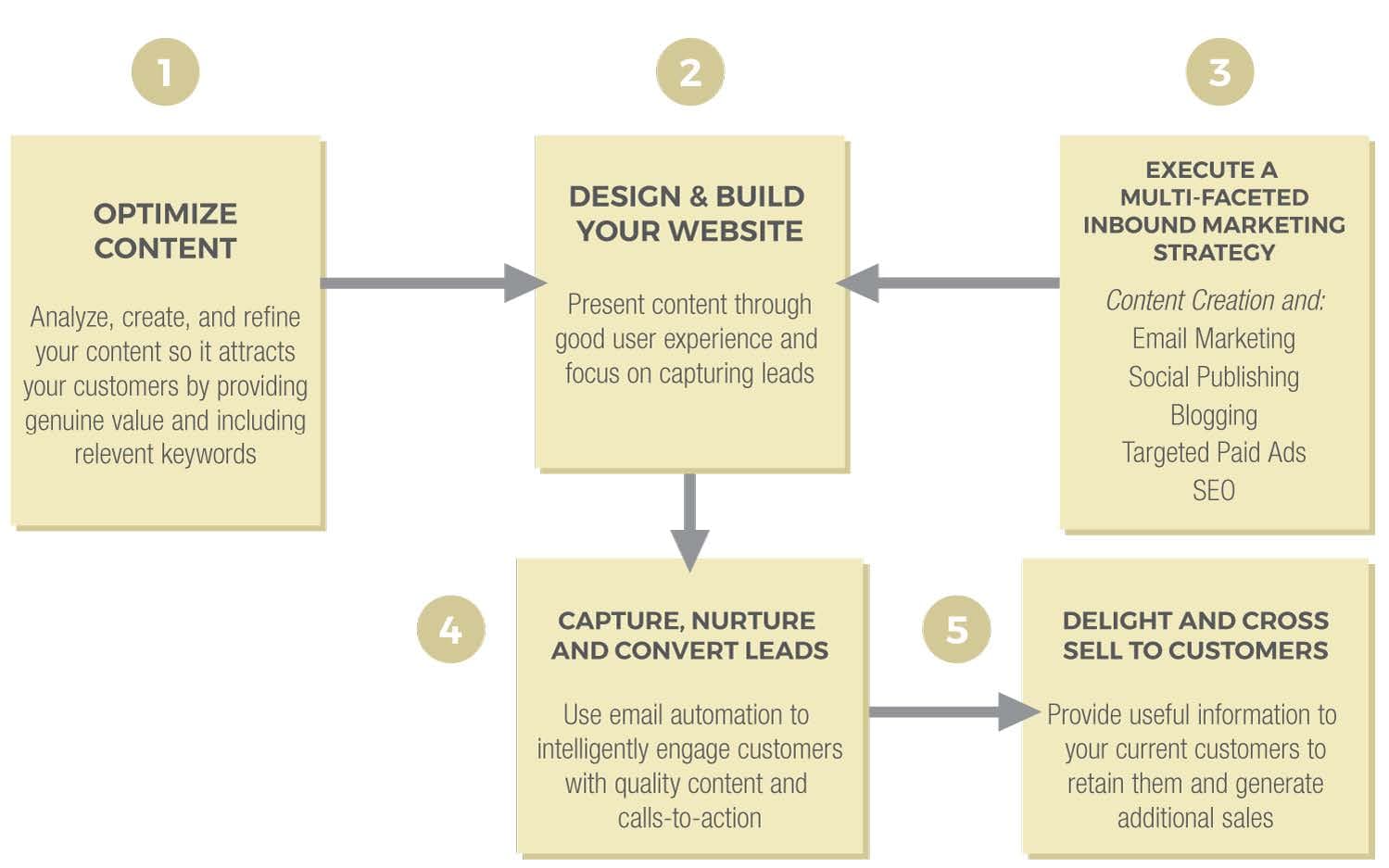

Five-step inbound marketing strategy diagram, from content to customer retention — The website was one piece of a broader plan that spanned content marketing, organic SEO, inbound, and lead nurturing, mapped end to end.
